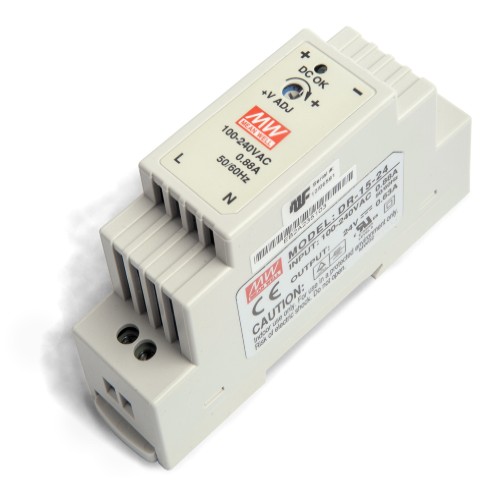

XT Power Supply (AC-to-DC)

The "XT-PS" power supply allows an XT1000, XT2000 or XT3000 weight indicator / transmitter to be powered by AC (alternating current) if a DC (direct current) supply is not available or if the use of AC is preferred.

It can convert an incoming voltage of 100-240 VAC (50/60 Hz) to a 24 VDC supply, which meets the incoming power requirements of the XT1000, XT2000 or XT3000 weight indicator / transmitter.

Simple to fit to a DIN rail / Omega rail and install, the XT-PS power supply is cost-effective and versatile. Each power supply unit can provide up to 15W of power, capable of feeding several units of XT1000, XT2000 or XT3000:

- 3 units of the -SO or -SO-AN versions

- 2 units of the -SO-PB, -SO-PN or -SO-ETHERNET-IP versions

The XT-PS can be fitted on the rail next to an XT1000 or XT3000 units, or inside a control cabinet where the XT2000 is panel mounted to the door.

Ask us a question about this simple-to-install power supply which converts AC to DC.

Key features:

• DIN rail / Omega rail mounted
• Simple to install
• Converts 100-240 VAC (50/60 Hz) input to 24 VDC output
• Can feed multiple XT1000, XT2000 or XT3000 units (see details above)
• Output voltage can be finely adjusted with a mini screwdriver
