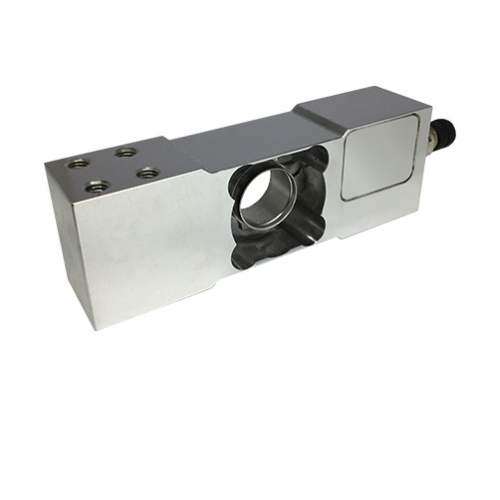

T12D Digital Single Point

The T12D DIGITAL stainless steel single point load cell is ideal for high resolution, high speed weight measurement with off-center loads in challenging applications. It provides a direct output in weight units, such as kg, that can be connected directly to a PLC without any additional transmitter, amplifier, or indicator. This brings significant cost savings. The direct output is via a CAN bus interface using a CANopen protocol.

It offers a fast data capture rate of 1600 readings per second and selectable digital filters ensure excellent precision, accuracy and repeatability.

Its hermetically sealed and fully welded construction, giving protection to class IP68 and IP69K, is very important for use in applications involving regular washdown at high temperatures and pressures defined by ISO 20653, such as the food and pharmaceutical industries.

Connectivity is versatile, thanks to the integral 8-pin M12 x 1 male connector (Code A) allowing customers to use their own interface to the load cell. As an option, a mating connector and 5m or 10m long Polyurethane cable is available.

Make an enquiry about this high precision DIGITAL single point load cell.

Key features:

• Capacity range: 15-50kg
• 1,000,000 counts signal output
• Stainless steel, fully welded and hermetically sealed, protected to IP68 and IP69K
• Output in weight units (not mV/V) for direct connection to PLC
• Fast measurement rate: 1600 readings per second and selectable digital filters
• Digital CAN bus interface with CANopen protocol
• Maximum platform size 600mm x 600mm (with load cell placed centrally under platform)
• Optional 5m or 10m length 6-wire Polyurethane cable with connector (ordered separately)

Typical applications:

• Weighing platforms up to 600mm x 600mm
• High speed bagging, filling and dosing systems
• High speed checkweighers
• Multi-head weighers
• Packaging machines
• High speed sorting machines

Ask a question about this competitively priced, high accuracy DIGITAL single point load cell.
