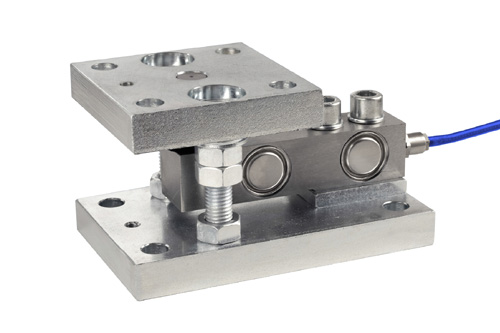

LA85 Conventional Mounting Assembly (300-5,000kg)

The LA85 is a conventional mounting assembly, designed for use with the T85 (or T85-N) shear beam load cell.

When combined with the T85 load cell (ordered separately) it is an ideal solution for high accuracy weighing of platforms, bag fillers, hoppers and tank weighing systems, especially legal-for-trade applications in harsh environments. ATEX options are also available for hazardous areas.

Make an enquiry about this excellent weighing assembly solution.

Key features:

• Very easy to install
• Capacity range 300kg to 5000kg
• Designed for platform, bag fillers, hopper and tank weighing systems
• LA85 and T85 combination is OIML approved to 3000 divisions (C3)
• Fully welded and hermetically sealed stainless steel construction with T85 load cell, with protection class IP68/IP69K and calibrated in mV/V/Ohm
• Option: Parylene coating for the T85 load cell when used in extremely harsh environments, as well as a version for high temperature use

Typical applications:

• Platform scales
• Big bag (FIBC) filling
• Belt scales and conveyors
• Tank and vessel weighing

Ask a question about this low capacity, legal-for-trade weighing solution.
