LA85 Anti-Vibration Assembly

The LA85AV is an anti-vibration weighing assembly, designed for use with the T85 (or T85-N) shear beam load cell.  It is designed to prevent unwanted forces and vibrations from affecting the output of the load cell.

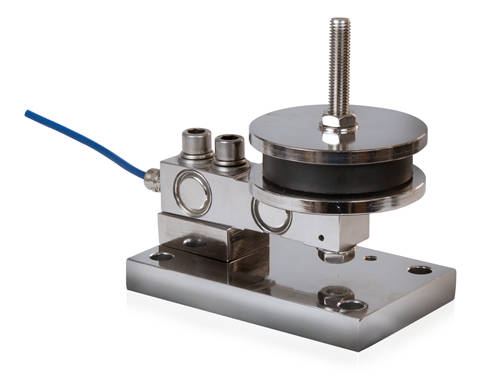

It consists of a stainless steel base plate mounted underneath the T85 load cell, with a natural rubber “silent block” pad mounted above the T85, connecting it to the structure being weighed. All metallic hardware is stainless steel.

When combined with the T85 load cell (ordered separately) it is an ideal solution for high accuracy weighing of hoppers, tanks and mixers experiencing vibration during operation, especially legal-for-trade applications in harsh environments.  ATEX options are also available for hazardous areas.

Make an enquiry about this excellent anti-vibration solution.

Key features:

• Very easy to install
• Capacity range 300kg to 5000kg
• Designed for platform, hopper, tank and mixer scales with vibration
• LA85AV and T85 (or T85-N) combination is OIML approved to 3000 divisions (C3)
• Fully welded and hermetically sealed stainless steel construction with 350i load cell, with protection class IP68/IP69K and calibrated in mV/V/Ohm
• Option: Parylene coating for the T85 load cell when used in extremely harsh environments, as well as a version for high temperature use

Typical applications:

• Platform scales
• Mixers
• Big bag (FIBC) filling
• Belt scales and conveyors
• Tank and vessel weighing
• Applications involving screw feeders
