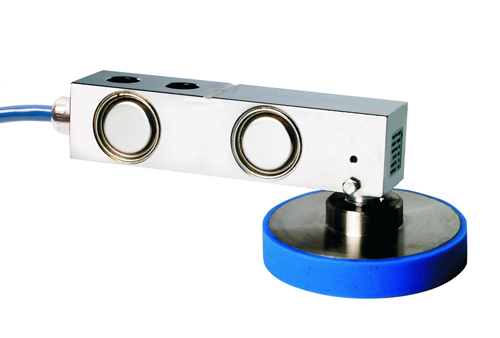

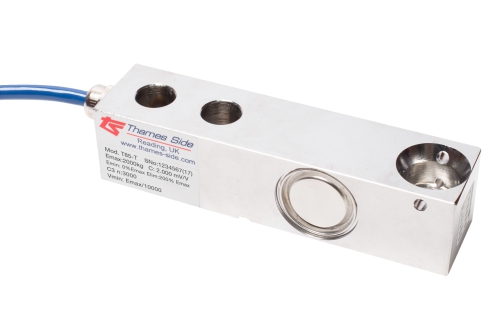

T85-T Shear Beam

The T85-T stainless steel shear beam is a high accuracy load cell for industrial weighing applications, but primarily for platform scales due to its low height and blind loading hole, which introduces the load into the shear beam in the most optimum way.  It has OIML C3 approval (which is ideal in legal-for-trade platforms) and it can withstand harsh working environments due to its fully welded and hermetically sealed design (IP68 & IP69K). The T85-T also has Model approval from Legal Metrology Department, Government of India.

It is suitable for a wide range of applications, thanks to its OIML approval to 3000 divisions (Class C3) and ATEX, PESO approval for use in hazardous areas where an explosion risk exists. For gas zones 20, 21 and 22 it has ATEX certification that does not require the use of safety barriers.

To reduce corner correction (setup and installation time) to a minimum, the T85-T load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%.

Make an enquiry about this reliable, cost-effective load cell for platform scales.

This new T85-T load cell replaces the previous model 350Ti load cell.

Key features:

• Fully welded and hermetically sealed stainless steel construction, with protection class IP68 & IP69K
• Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
• Model approval from Legal Metrology Department, Government of India
• Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
• Wide operational temperature range: -30 °C to +70 °C
• Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.

Options:

• Parylene coating for the load cell when used in extremely harsh / corrosive environments
• ATEX, PESO approved load cell available for use in hazardous areas
• High temperature version upto 150 °C (continuous temperature) available

Typical application:

• High accuracy platform scales

Ask a question about this world class, competitively priced load cell.
