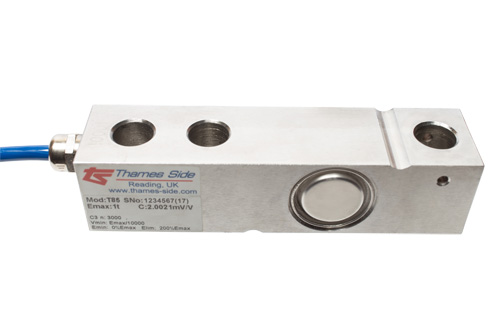

T85 Shear Beam

The T85 stainless steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications worldwide.  It has OIML approval (which is ideal in legal-for-trade applications) and it can withstand harsh manufacturing environments due to its fully welded and hermetically sealed design (IP68 & IP69K). The T85 also has Model approval from Legal Metrology Department, Government of India.

It is suitable for a wide range of applications, thanks to its OIML approval to 3000 divisions (Class C3) and ATEX, PESO approval for use in hazardous areas where an explosion risk exists.  For gas zones 20, 21 and 22 it has ATEX certification that does not require the use of safety barriers.

For use in platform scales, the T85 load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%. This reduces corner correction setup time to a minimum.

Make an enquiry about this reliable, cost-effective load cell.

The most common end use industries are Food Processing, Pharmaceutical, Chemical and Bulk Handling.

This new T85 load cell replaces the previous model 350i load cell.

Key features:

• Fully welded and hermetically sealed stainless steel construction, with protection class IP68 & IP69K
• Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
• Model approval from Legal Metrology Department, Government of India
• Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 5000kg, 7500kg and 10,000kg
• Wide operational temperature range: -30 °C to +70 °C
• Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.

Options:

• Parylene coating for the load cell when used in extremely harsh / corrosive environments
• ATEX, PESO approved load cell available for use in hazardous areas
• High temperature version upto 150 °C (continuous temperature) available

Typical applications:

• Platform scales
• Big bag (FIBC) filling
• Belt scales and conveyors
• Tank and vessel weighing

It can be used together with the following weighing modules: Conventional Load Cell Assembly LA85, LA85 Anti-Vibration assembly and the unique, patented LeverMount^®.
