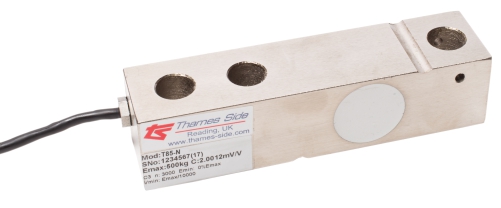

T85-N Shear Beam

The T85-N low cost nickel plated alloy steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications where a fully welded and hermetically sealed stainless steel construction is not required.  It has OIML C3 approval (which is ideal in legal-for-trade applications) and it’s potted and silicone sealed to IP66. The T85-N also has Model approval from Legal Metrology Department, Government of India.

For use in platform scales, the T85-N load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%.  This reduces corner correction setup time to a minimum.

Make an enquiry about this reliable and very cost-effective load cell.

Key features:

• Nickel plated alloy steel construction, silicone sealed to IP66
• Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
• Model approval from Legal Metrology Department, Government of India
• Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
• Wide operational temperature range: -30 °C to +70 °C
• PVC cable

Typical applications:

• Platform scales
• Big bag (FIBC) filling
• Belt scales and conveyors
• Tank and vessel weighing

It can be used together with the following mild/stainless steel weighing modules: Conventional Load Cell Assembly LA85 and LA85 Anti-Vibration assembly.
