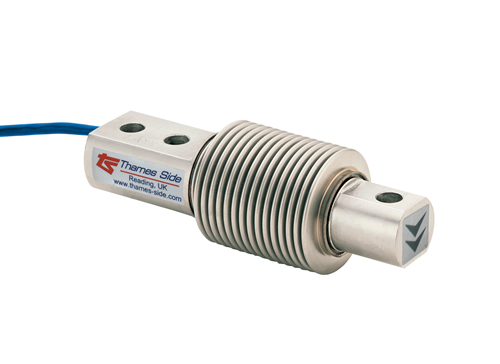

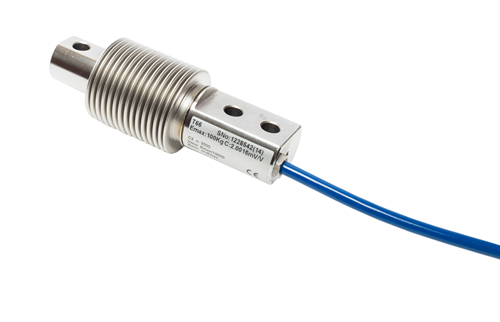

T66 Bending Beam

The T66 high precision stainless steel bending beam is a world class load cell and widely used in industrial weighing applications. It has OIML approval (which is ideal in legal-for-trade applications) and it can withstand harsh manufacturing environments due to its fully welded and hermetically sealed design (IP68 & IP69K). The T85 also has Model approval from Legal Metrology Department, Government of India.

Available in a 4-wire or 6-wire (with sense wires) configuration, it has OIML approval to 3000 divisions (Class C3) or 6000 divisions (C6) and ATEX, PESO approval for use in hazardous areas where an explosion risk exists.  Its certification for dust zones 20, 21 and 22 does not require the use of safety barriers.

Make an enquiry about this excellent, cost effective load cell.

The most common end use industries are Food Processing, Pharmaceutical, Chemical and Bulk Handling.

Key features:

• Fully welded and hermetically sealed stainless steel construction, with protection class IP68 & IP69K
• Complies with OIML R60 regulations up to 3000 divisions (C3) or 6000 divisions (C6) for scales according to EN 45501
• Model approval from Legal Metrology Department, Government of India
• Nominal capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg
• Wide operational temperature range: -30 °C to +70 °C
• Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.

Options:

• Parylene coating for the load cell when used in extremely harsh / corrosive environments
• ATEX, PESO approved load cell available for use in hazardous areas
• High temperature version upto 150 °C (continuous temperature) available

Typical applications:

• Platform scales
• Big bag (FIBC) filling
• Belt scales
• Tank weighing
