T16 Fluid Damped

The T16 single point fluid damped platform load cell, also known as oil damped load cell or viscous damped load cell, is a reliable, simple, high precision and low cost solution for dynamic weighing applications, even with off-centre loading. The internal fluid damps the vibrations of the sensing element, offering faster settling times, increased weighing speeds and increased load cell life when compared to a non-damped load cell. It is therefore ideal for high speed check weighing and filling machines.

The internal aluminium sensor element is surrounded by a grade 316 stainless steel housing that is protected to IP68 by a special venting kit – allowing for wash-down in harsh environments that require regular cleaning.  Its maximum operating temperature is a high 70 °C.

The excellent durability of this load cell comes from its integrated on-centre overload protection, with a dual stop providing bi-directional protection from upwards and downwards overload.

It is approved to OIML C4 (4000 divisions) as standard, with a durable screened polyurethane cable; this provides a higher level of resistance to chemicals, UV radiation, cuts and damage than a PVC cable.

Make an enquiry about this high precision, viscous damped load cell.

Key features:

• Capacity range: 5-35kg
• High accuracy and fast settling time with off-centre dynamic loads
• Bi-directional overload protection
• Complies with OIML R60 regulations up to 4000 divisions (C4) for scales according to EN 45501
• Viscous damped aluminium alloy sensing element; 316 stainless steel housing
• IP68 protection using special venting kit
• 500mm x 500mm, max. platform size (with load cell placed centrally under platform)
• Special polyurethane cable which has high toughness and resistance to cuts, chemicals, UV radiation and rodent (rat) bites, etc.

Typical applications:

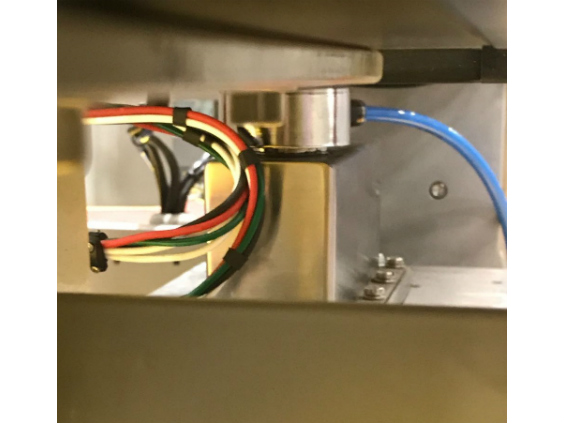

• High speed check weighing
• Form, fill, seal machinery
• High speed bagging, filling and dosing machines
• Dynamic weighing applications

Ask a question about this competitively priced, high accuracy and high speed load cell.
