Shear Beam Load Cells

Thames Side’s range of shear beam load cells has among the highest specifications in the market for process weighing, industrial scale and general measurement applications. Load cell capacities ranging from 300kg to 10,000kg are available. They are designed specifically for high accuracy applications in tank and vessel weighing, filling systems, platform scales, bagging machinery, belt scales and conveyor systems.

T85 (300-10,000kg)

• Stainless steel load cell
• Fully welded and hermetically sealed to IP68 & IP69K
• OIML C3 (3000 divisions) approval
• Model approval by Legal Metrology Department, Government of India
• Durable polyurethane cable
• Calibrated in mV/V/Ohm
• ATEX, PESO approval available
• High temperature version available (up to 150°C)

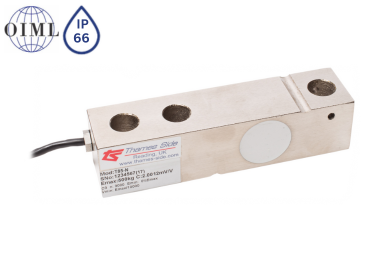

T85-N (300-2,000kg)

• Nickel plated alloy steel load cell
• OIML C3 (3000 divisions) approval
• Model approval by Legal Metrology Department, Government of India
• PVC cable
• Cost-effective model

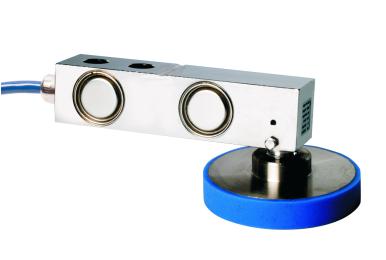

T85-T (300-2,000kg)

• Stainless steel load cell
• Blind loading hole for platform scales
• Fully welded and hermetically sealed to IP68 & IP69K
• OIML C3 (3000 divisions) approval
• Model approval by Legal Metrology Department, Government of India
• Durable polyurethane cable
• Calibrated in mV/V/Ohm
• ATEX, PESO approval available
• High temperature version available (up to 150°C)

Our Model T85 and T85-T are manufactured from stainless steel, fully welded and hermetically sealed to provide total environmental protection (IP68 and IP69K). The T85-T model has a blind loading hole, ideal for use in platform scales.

For less severe environments, our T85-N nickel plated alloy steel shear beam is constructed with a humidity-resistant silicone potting compound.

Our shear beam load cells carry recognised Weights and Measures approval from OIML as well as Model approval from Legal Metrology Department, Government of India. The T85 series of load cells are available with OIML C3 (3000 divisions) approval.

The T85 has ATEX and PESO approval for use in hazardous areas. For use in dust zones 20, 21 and 22 there is no need for safety barriers.

Options of special cable lengths, Parylene coating (for highly aggressive and corrosive area), high temperature versions, as well as your own company labelling and 3rd party OIML certification are available.

We can supply technical drawings and 3D CAD files (e.g. in STEP format) to engineers who are specifying load cells for new equipment and we can supply installation drawings/technical manuals for site engineers responsible for system installation.

All of our load cells manufactured since July 2014 are RoHS 2 compliant.

Complementing our shear beam load cells is a range of weighing assemblies, such as the unique, patented LeverMount^®, Conventional Load Cell Assembly LA85 and the LA85 Anti-Vibration assembly. Additionally, our range of rugged junction boxes and precision measuring electronics provides the optimum weighing solution in all applications.

We hold an extensive stock of standard products at our Mumbai warehouse, so that products can be shipped immediately on request.

Contact Us for more information.

Further information

Contact Thames Side Sensors India to discuss your requirements for shear beam load cells in any application. We have the experience and applications knowledge to provide expert guidance on the optimum solution for you.
